spring batch简单使用(基于xml)

不忘初心2021 / 2023-05-03 / 原文

首先说下spring batch是个啥

他是轻量级，完善的批处理框架，

他是基于spring框架开发的框架，

他提供了大量可重复使用的组件，包含日志，追踪，事务，任务作业统计，任务重启，跳过，重复，资管管理

他的调用需要额外引入调度框架

他的优势

面向chunk的处理

事务管理能力

元数据管理

易监控的批处理应用

易拓展，可复用

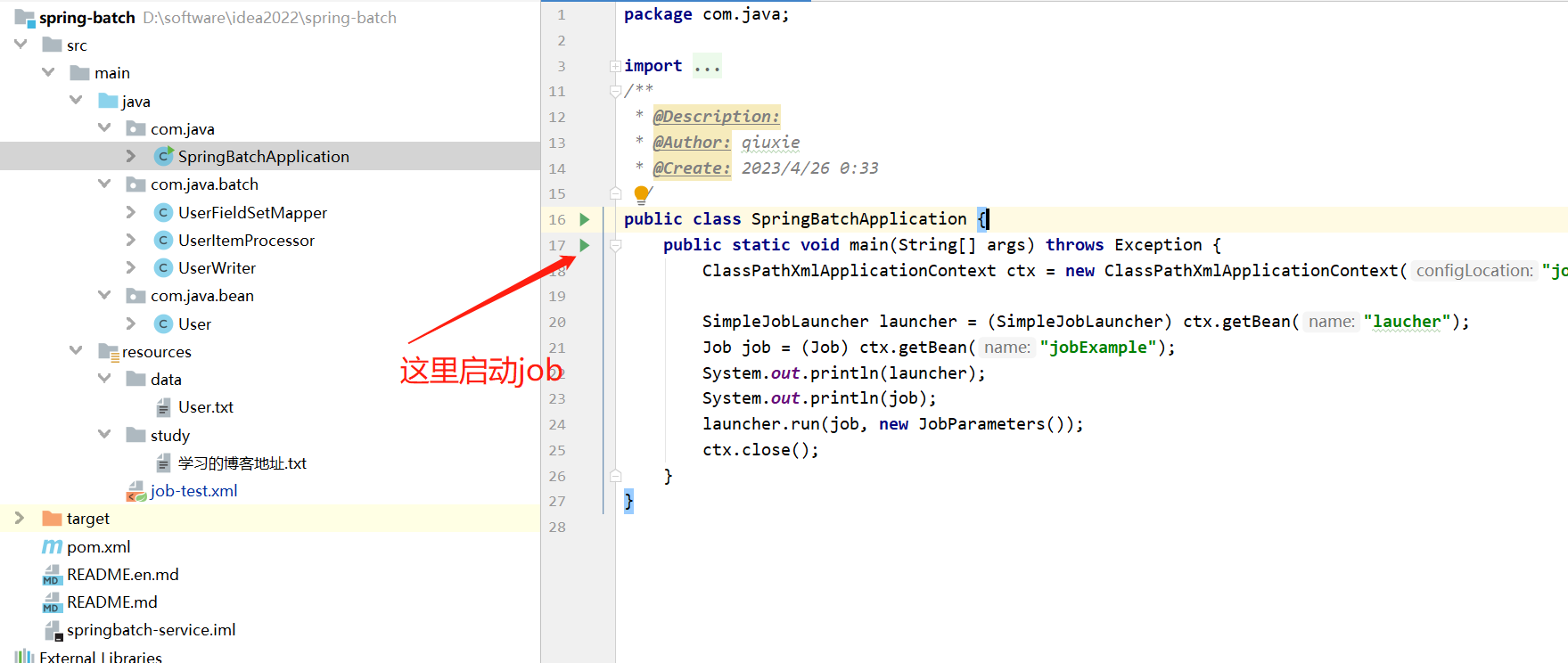

先来个效果图

我是项目中使用到了spring batch，而且不是基于springboot的spring batch,而是使用tomcat容器，基于xml形式的批处理项目，因而有了本篇博客，本次只写最简单的介绍和使用

这是最基础的结构，下面对于单个模块分别说明

<bean id="reader" class="org.springframework.batch.item.file.FlatFileItemReader">
        <property name="resource" value="data/User.txt"></property>
        <!--将一条记录转换为java对象，一般使用LineTokenizer和FieldSetMapper组合来实现，默认DefaultLineMapper-->
        <property name="lineMapper" ref="lineMapper"></property>
        <!--将一条记录分割为多个字段-->
        <property name="linesToSkip" value="1"></property>
        <!--FieldSetMapper可以将多个字段值转化为java对象-->
        <!--LineCallbackHandler用于处理文件中记录回调操作-->
    </bean>

 <bean id="lineMapper" class="org.springframework.batch.item.file.mapping.DefaultLineMapper">

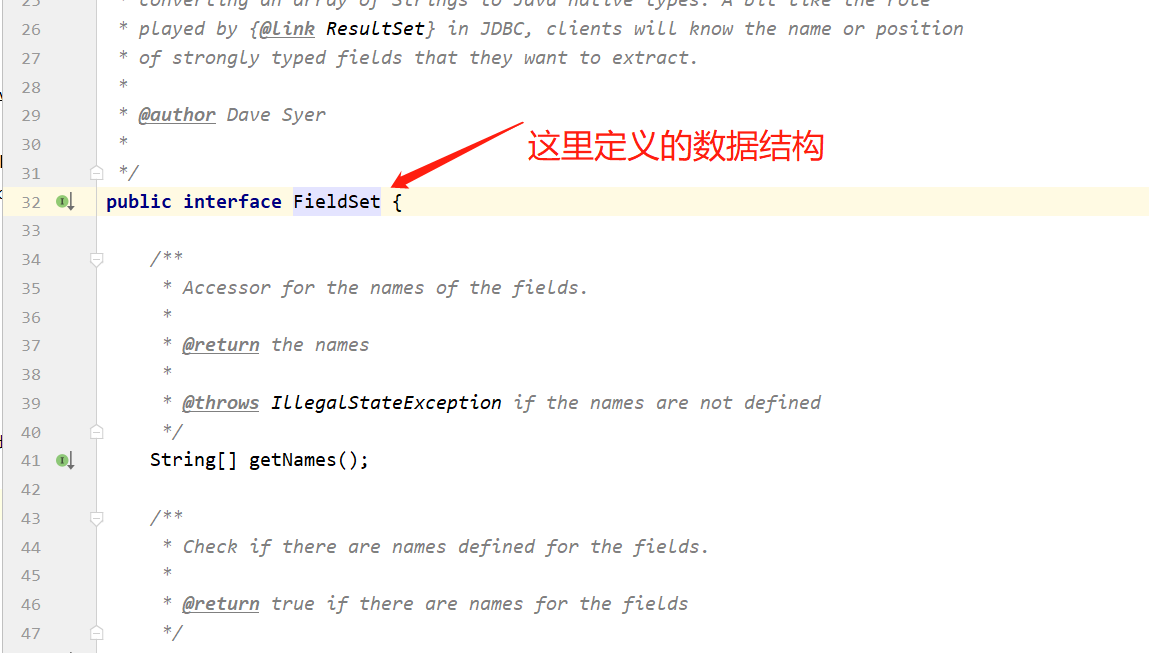

        <!--作用是将一条记录转换成FieldSet对象-->
        <property name="lineTokenizer" ref="lineTokenizer"></property>
        <!--将FieldSet对象转化为领域对象-->
        <property name="fieldSetMapper" ref="fieldSetMapper"></property>
    </bean>

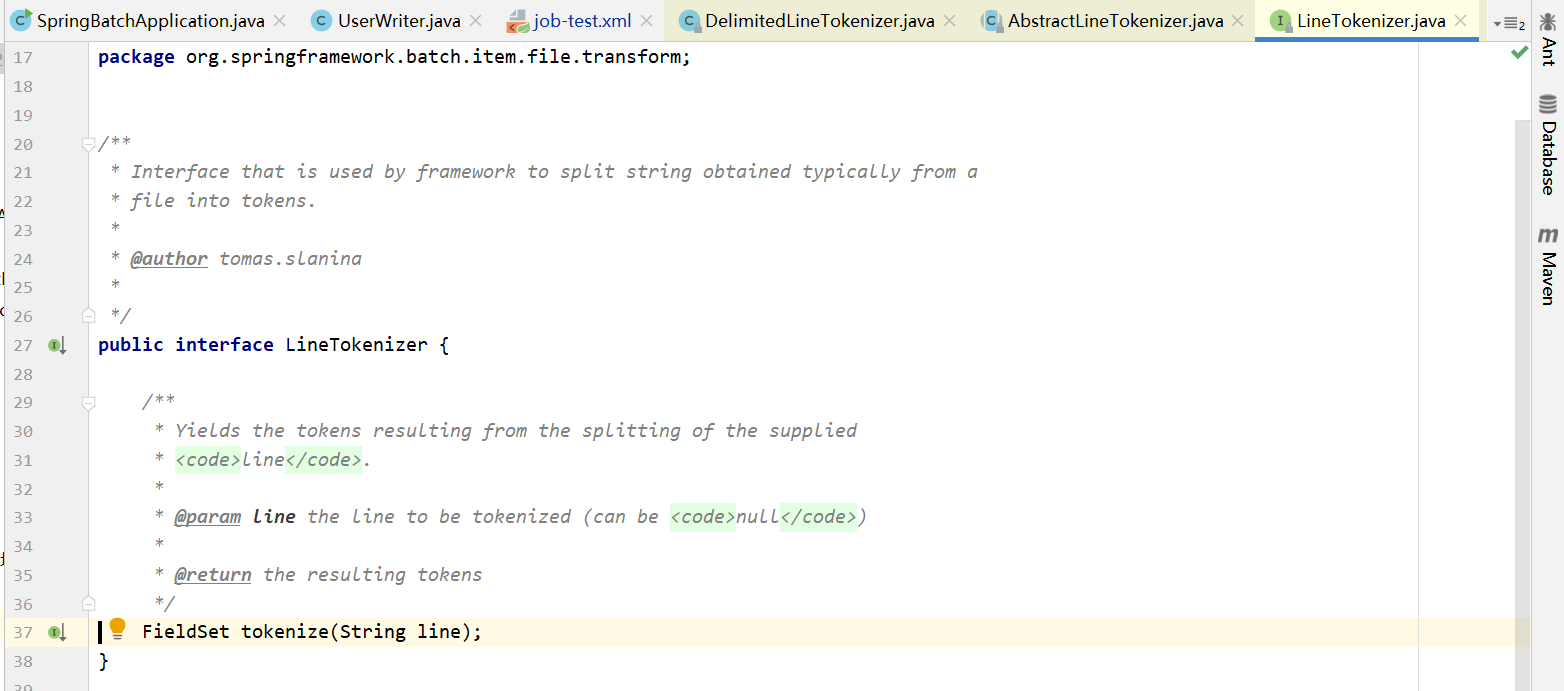

　　先看下lineTokenizer到底用了什么样的实现

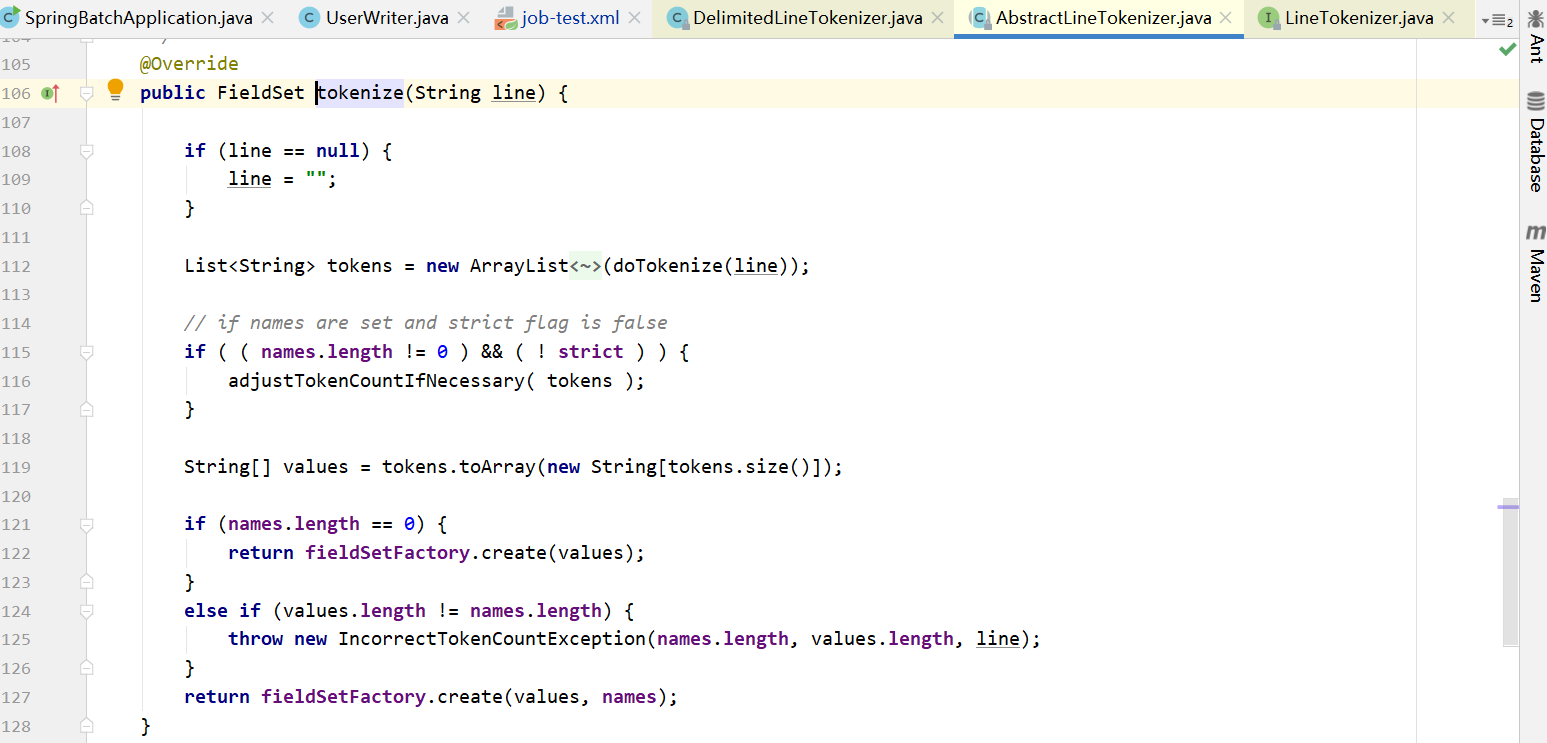

其实对于lineTokenizer,spring batch提供了四种实现

<!--这里是数据的一些处理逻辑，可以进行数据加工操作-->
    <bean id="process" class="com.java.batch.UserItemProcessor"></bean>

 <!--处理好的数据写入操作，一般是存放到文件中-->
    <bean id="write" class="com.java.batch.UserWriter">

　下面给出完整代码

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.java</groupId>
    <artifactId>springbatch-service</artifactId>
    <version>1.0-SNAPSHOT</version>


    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.10.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>


    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-batch</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-oxm</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <version>1.4.196</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.batch</groupId>
            <artifactId>spring-batch-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.26</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>

View Code

package com.java.bean;

import lombok.Builder;
import lombok.Data;

/**
 * @Description:
 * @Author: qiuxie
 * @Create: 2023/4/26 0:42
 */
@Data
@Builder
public class User {

    private String id;
    private String name;
    private String age;

}


package com.java.batch;

import com.java.bean.User;
import org.springframework.batch.item.file.mapping.FieldSetMapper;
import org.springframework.batch.item.file.transform.FieldSet;
import org.springframework.validation.BindException;

/**
 * @Description:
 * @Author: qiuxie
 * @Create: 2023/4/26 0:45
 */
public class UserFieldSetMapper implements FieldSetMapper<User> {
    @Override
    public User mapFieldSet(FieldSet fieldSet) throws BindException {
        User user = User.builder().id(fieldSet.readString("ID")).name(fieldSet.readString("NAME")).age(fieldSet.readString("AGE")).build();
        return user;
    }
}

package com.java.batch;

import com.java.bean.User;
import org.springframework.batch.item.ItemProcessor;

/**
 * @Description:  对每条数据进行处理
 * @Author: qiuxie
 * @Create: 2023/4/26 0:48
 */
public class UserItemProcessor  implements ItemProcessor<User, User> {
    @Override
    public User process(User user) throws Exception {
        if (Integer.parseInt(user.getAge()) % 2 == 0) {
            return user;
        }
        return null;
    }
}

package com.java.batch;

import com.java.bean.User;
import lombok.extern.slf4j.Slf4j;
import org.springframework.batch.item.ItemWriter;

import java.util.List;

/**
 * @Description: 将前面处理好的数据在这里进行写入操作
 * @Author: qiuxie
 * @Create: 2023/4/26 0:49
 */
@Slf4j
public class UserWriter  implements ItemWriter<User> {
    @Override
    public void write(List<? extends User> list) throws Exception {

        for(User user : list){
            log.info("【数据】user:{}",user);
        }

    }
}

　　job-test.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:batch="http://www.springframework.org/schema/batch"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:jdbc="http://www.springframework.org/schema/jdbc"
       xmlns:task="http://www.springframework.org/schema/task"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/batch http://www.springframework.org/schema/batch/spring-batch.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
        http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-4.3.xsd
        http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task-4.3.xsd">


    <batch:job id="jobExample">
        <batch:step id="stepExample">
            <batch:tasklet>
                <batch:chunk reader="reader" processor="process" writer="write"
                             commit-interval="3">
                </batch:chunk>
            </batch:tasklet>
        </batch:step>
    </batch:job>
    <bean id="reader" class="org.springframework.batch.item.file.FlatFileItemReader">
        <property name="resource" value="data/User.txt"></property>
        <!--将一条记录转换为java对象，一般使用LineTokenizer和FieldSetMapper组合来实现，默认DefaultLineMapper-->
        <property name="lineMapper" ref="lineMapper"></property>
        <!--将一条记录分割为多个字段-->
        <property name="linesToSkip" value="1"></property>
        <!--FieldSetMapper可以将多个字段值转化为java对象-->
        <!--LineCallbackHandler用于处理文件中记录回调操作-->
    </bean>


    <bean id="lineMapper" class="org.springframework.batch.item.file.mapping.DefaultLineMapper">
        <!--作用是将一条记录转换成FieldSet对象-->
        <property name="lineTokenizer" ref="lineTokenizer"></property>
        <!--将FieldSet对象转化为领域对象-->
        <property name="fieldSetMapper" ref="fieldSetMapper"></property>
    </bean>


    <bean id="lineTokenizer" class="org.springframework.batch.item.file.transform.DelimitedLineTokenizer">
        <property name="names" value="ID,NAME,AGE"></property>
    </bean>

    <bean id="fieldSetMapper" class="com.java.batch.UserFieldSetMapper"></bean>

    <!--这里是数据的一些处理逻辑，可以进行数据加工操作-->
    <bean id="process" class="com.java.batch.UserItemProcessor"></bean>

    <!-- 写CSV文件 -->
<!--    <bean id="csvItemWriter" scope="step" class="com.java.batch.CsvItemWriter">-->
<!--        <property name="resource" value="D:\software\idea2022\spring-batch\src\main\resources\test.csv"/>-->
<!--          <property name="lineAggregator" ref="lineAggregator"/>-->
<!--    </bean>-->

<!--    <bean id="lineAggregator" scope="step" class="com.java.batch.UserAggregator">-->

<!--    </bean>-->

    <!--处理好的数据写入操作，一般是存放到文件中-->
    <bean id="write" class="com.java.batch.UserWriter">

    </bean>

    <!-- 选用内存级别的数据库，不在需要用oracle、mysql等数据库,采用h2数据库，不需要手动配置，只需要的pom.xml文件中引入h2即可 -->
    <bean id="jobRepository" class="org.springframework.batch.core.repository.support.MapJobRepositoryFactoryBean">
        <property name="transactionManager" ref="transactionManager"></property>
    </bean>
    <bean id="executor" class="org.springframework.core.task.SimpleAsyncTaskExecutor"></bean>
    <bean id="laucher" class="org.springframework.batch.core.launch.support.SimpleJobLauncher">
        <property name="jobRepository" ref="jobRepository"></property>
        <property name="taskExecutor" ref="executor"></property>
    </bean>
    <bean id="transactionManager" class="org.springframework.batch.support.transaction.ResourcelessTransactionManager"/>



</beans>

　　User.txt

ID,NAME,AGE
1,lzj,28
2,tom,20
3,terry,30
4,lerry,18
5,bob,25
6,linda,27
7,marry,39
8,long,22
9,kin,33
10,jiken,40

package com.java;

import org.springframework.batch.core.Job;
import org.springframework.batch.core.JobParameters;
import org.springframework.batch.core.JobParametersInvalidException;
import org.springframework.batch.core.launch.support.SimpleJobLauncher;
import org.springframework.batch.core.repository.JobExecutionAlreadyRunningException;
import org.springframework.batch.core.repository.JobInstanceAlreadyCompleteException;
import org.springframework.batch.core.repository.JobRestartException;
import org.springframework.context.support.ClassPathXmlApplicationContext;
/**
 * @Description:
 * @Author: qiuxie
 * @Create: 2023/4/26 0:33
 */
public class SpringBatchApplication {
    public static void main(String[] args) throws Exception {
        ClassPathXmlApplicationContext ctx = new ClassPathXmlApplicationContext("job-test.xml");

        SimpleJobLauncher launcher = (SimpleJobLauncher) ctx.getBean("laucher");
        Job job = (Job) ctx.getBean("jobExample");
        System.out.println(launcher);
        System.out.println(job);
        launcher.run(job, new JobParameters());
        ctx.close();
    }
}

　　以上基于jdk 1.8环境

下面将实现从数据库中查询数据，将查询的数据写入txt文件中

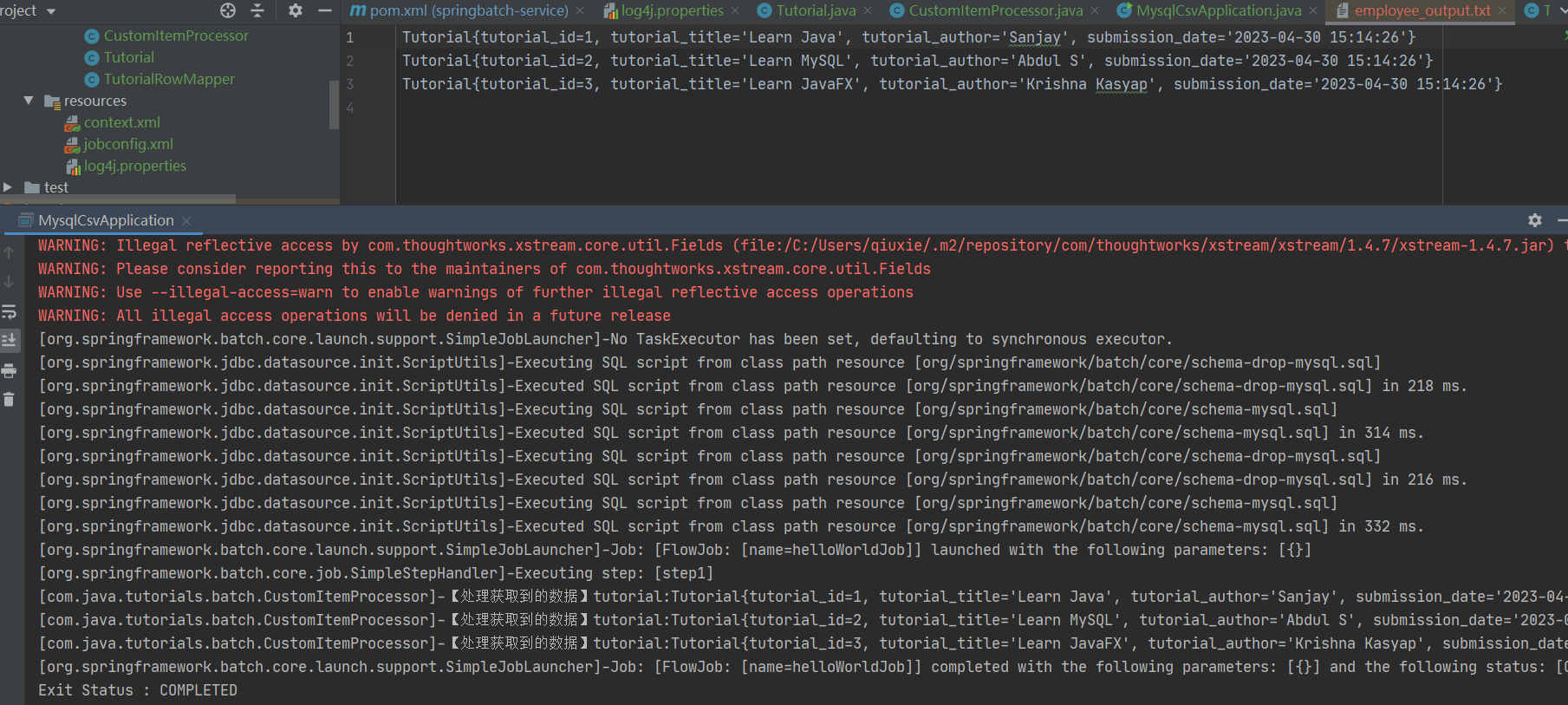

效果图

db脚本部分

USE spring_batch

CREATE TABLE tutorials(
   tutorial_id INT(10) PRIMARY KEY AUTO_INCREMENT COMMENT '主键',
   tutorial_author VARCHAR(20) COMMENT '作者',
   tutorial_title  VARCHAR(20) COMMENT '题目',
   submission_date VARCHAR(20) COMMENT '提交时间'
);
SELECT  *  FROM  tutorials;

INSERT INTO tutorials(tutorial_author,tutorial_title,submission_date)
VALUES
('Sanjay','Learn Java',NOW()),
('Abdul S','Learn MySQL',NOW()),
('Krishna Kasyap','Learn JavaFX',NOW())

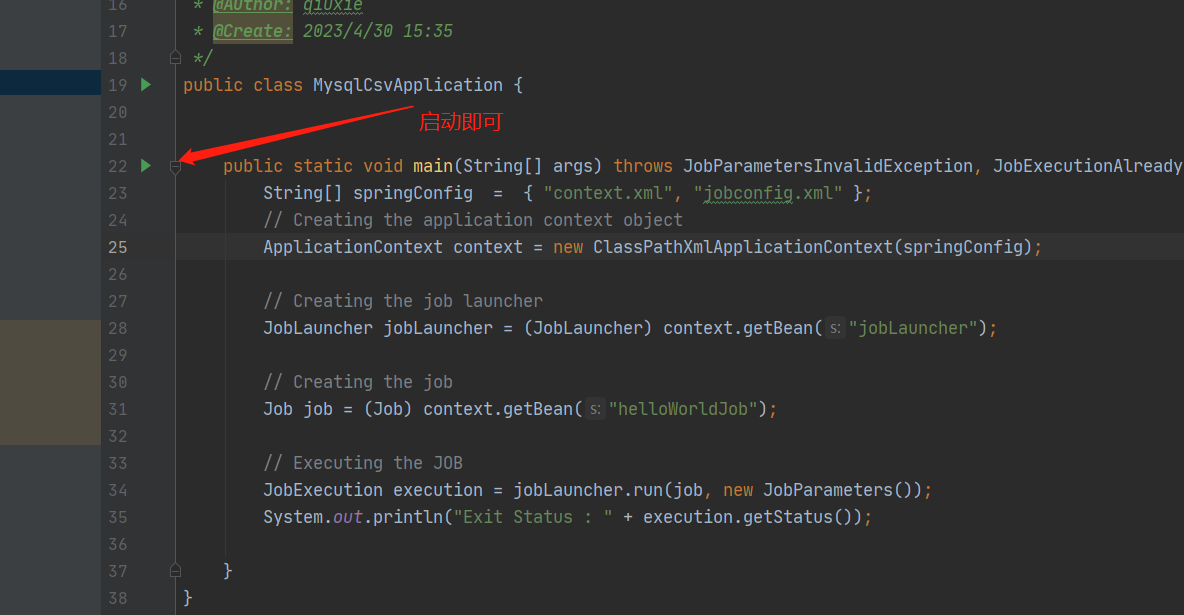

　　java代码部分

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.java</groupId>
    <artifactId>springbatch-service</artifactId>
    <version>1.0-SNAPSHOT</version>
    <properties>
        <jdk.version>1.8</jdk.version>
        <spring.version>4.3.8.RELEASE</spring.version>
        <spring.batch.version>3.0.7.RELEASE</spring.batch.version>
        <mysql.driver.version>5.1.25</mysql.driver.version>
        <junit.version>4.11</junit.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
        <!-- Spring Core -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- Spring jdbc, for database -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- Spring XML to/back object -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-oxm</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- MySQL database driver -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.driver.version}</version>
        </dependency>

        <!-- Spring Batch dependencies -->
        <dependency>
            <groupId>org.springframework.batch</groupId>
            <artifactId>spring-batch-core</artifactId>
            <version>${spring.batch.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.batch</groupId>
            <artifactId>spring-batch-infrastructure</artifactId>
            <version>${spring.batch.version}</version>
        </dependency>

        <!-- Spring Batch unit test -->
        <dependency>
            <groupId>org.springframework.batch</groupId>
            <artifactId>spring-batch-test</artifactId>
            <version>${spring.batch.version}</version>
        </dependency>

        <!-- Junit -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>spring-batch</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-eclipse-plugin</artifactId>
                <version>2.9</version>
                <configuration>
                    <downloadSources>true</downloadSources>
                    <downloadJavadocs>false</downloadJavadocs>
                </configuration>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.3.2</version>
                <configuration>
                    <source>${jdk.version}</source>
                    <target>${jdk.version}</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

　　log4j.properties

#将等级为DEBUG的日志信息输出到console和file这两个目的地，console和file的定义在下面的代码
log4j.rootLogger=info,console,file

#控制台输出的相关设置
log4j.appender.console = org.apache.log4j.ConsoleAppender
log4j.appender.console.Target = System.out
log4j.appender.console.Threshold=DEBUG
log4j.appender.console.layout = org.apache.log4j.PatternLayout
log4j.appender.console.layout.ConversionPattern=[%c]-%m%n

#文件输出的相关设置
log4j.appender.file = org.apache.log4j.RollingFileAppender
log4j.appender.file.File=./log/kuang.log
log4j.appender.file.MaxFileSize=10mb
log4j.appender.file.Threshold=DEBUG
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=[%p][%d{yy-MM-dd}][%c]%m%n

#日志输出级别
log4j.logger.org.mybatis=DEBUG
log4j.logger.java.sql=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.ResultSet=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG

　　jobcconfig.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
       xmlns:batch = "http://www.springframework.org/schema/batch"
       xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
       xmlns:util = "http://www.springframework.org/schema/util"
       xsi:schemaLocation = "http://www.springframework.org/schema/batch

      http://www.springframework.org/schema/batch/spring-batch-2.2.xsd
      http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-3.2.xsd">


    <import resource = "context.xml" />
    <bean id = "tutorial" class = "com.java.tutorials.batch.Tutorial" scope = "prototype" />

    <batch:job id = "helloWorldJob">
        <batch:step id = "step1">
            <batch:tasklet>
                <batch:chunk reader = "mysqlItemReader"
                             writer = "flatFileItemWriter" processor = "itemProcessor"
                             commit-interval = "10">
                </batch:chunk>
            </batch:tasklet>
        </batch:step>
    </batch:job>

    <bean id = "mysqlItemReader"
          class = "org.springframework.batch.item.database.JdbcCursorItemReader" >
        <property name = "dataSource" ref = "dataSource" />
        <property name = "sql" value = "select * from tutorials" />
        <property name = "rowMapper">
            <bean class = "com.java.tutorials.batch.TutorialRowMapper" />
        </property>
    </bean>

    <bean id = "itemProcessor" class = "com.java.tutorials.batch.CustomItemProcessor" />

    <bean id = "flatFileItemWriter"
          class = " org.springframework.batch.item.file.FlatFileItemWriter">
        <property name = "resource" value = "file:target/outputfiles/employee_output.txt"/>
        <property name = "lineAggregator">
            <bean class = " org.springframework.batch.item.file.transform.PassThroughLineAggregator"/>
        </property>
    </bean>
</beans>

　　context.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
       xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
       xmlns:jdbc = "http://www.springframework.org/schema/jdbc"
       xsi:schemaLocation = "http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
      http://www.springframework.org/schema/jdbc
      http://www.springframework.org/schema/jdbc/spring-jdbc-3.2.xsd ">

    <!-- stored job-meta in database -->
    <bean id = "jobRepository"
          class = "org.springframework.batch.core.repository.support.JobRepositoryFactoryBean">
        <property name = "dataSource" ref = "dataSource" />
        <property name = "transactionManager" ref = "transactionManager" />
        <property name = "databaseType" value = "mysql" />
    </bean>

    <bean id = "transactionManager"
          class = "org.springframework.batch.support.transaction.ResourcelessTransactionManager" />

    <bean id = "dataSource"
          class = "org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name = "driverClassName" value = "com.mysql.jdbc.Driver" />
        <property name = "url" value = "jdbc:mysql://127.0.0.1:3310/spring_batch?useUnicode=true&characterEncoding=utf-8&useSSL=false" />
        <property name = "username" value = "spring" />
        <property name = "password" value = "123456" />
    </bean>

    <bean id = "jobLauncher"
          class = "org.springframework.batch.core.launch.support.SimpleJobLauncher">
        <property name = "jobRepository" ref = "jobRepository" />
    </bean>

    <!-- create job-meta tables automatically -->
    <jdbc:initialize-database data-source = "dataSource">
        <jdbc:script location = "org/springframework/batch/core/schema-drop-mysql.sql" />
        <jdbc:script location = "org/springframework/batch/core/schema-mysql.sql" />
    </jdbc:initialize-database>
</beans>

package com.java.tutorials.batch;


/**
 * @Description:
 * @Author: qiuxie
 * @Create: 2023/4/30 15:25
 */
public class Tutorial {

    private int tutorial_id;
    private String tutorial_title;
    private String tutorial_author;
    private String submission_date;

    public int getTutorial_id() {
        return tutorial_id;
    }

    public void setTutorial_id(int tutorial_id) {
        this.tutorial_id = tutorial_id;
    }

    public String getTutorial_title() {
        return tutorial_title;
    }

    public void setTutorial_title(String tutorial_title) {
        this.tutorial_title = tutorial_title;
    }

    public String getTutorial_author() {
        return tutorial_author;
    }

    public void setTutorial_author(String tutorial_author) {
        this.tutorial_author = tutorial_author;
    }

    public String getSubmission_date() {
        return submission_date;
    }

    public void setSubmission_date(String submission_date) {
        this.submission_date = submission_date;
    }

    @Override
    public String toString() {
        return "Tutorial{" +
                "tutorial_id=" + tutorial_id +
                ", tutorial_title='" + tutorial_title + '\'' +
                ", tutorial_author='" + tutorial_author + '\'' +
                ", submission_date='" + submission_date + '\'' +
                '}';
    }
}

package com.java.tutorials.batch;


import org.apache.log4j.Logger;
import org.springframework.batch.item.ItemProcessor;

/**
 * @Description:
 * @Author: qiuxie
 * @Create: 2023/4/30 15:24
 */
public class CustomItemProcessor  implements ItemProcessor<Tutorial, Tutorial> {

    private final Logger logger=Logger.getLogger(CustomItemProcessor.class);


    @Override
    public Tutorial process(Tutorial tutorial) throws Exception {
        logger.info("【处理获取到的数据】tutorial:"+tutorial);
        return tutorial;
    }
}

package com.java.tutorials.batch;


import org.springframework.jdbc.core.RowMapper;

import java.sql.ResultSet;
import java.sql.SQLException;

/**
 * @Description:
 * @Author: qiuxie
 * @Create: 2023/4/30 15:33
 */
public class TutorialRowMapper implements RowMapper<Tutorial> {

    @Override
    public Tutorial mapRow(ResultSet rs, int i) throws SQLException {
        Tutorial tutorial = new Tutorial();
        tutorial.setTutorial_id(rs.getInt("tutorial_id"));
        tutorial.setTutorial_title(rs.getString("tutorial_title"));
        tutorial.setTutorial_author(rs.getString("tutorial_author"));
        tutorial.setSubmission_date(rs.getString("submission_date"));
        return tutorial;
    }
}

package com.java;

import org.springframework.batch.core.Job;
import org.springframework.batch.core.JobExecution;
import org.springframework.batch.core.JobParameters;
import org.springframework.batch.core.JobParametersInvalidException;
import org.springframework.batch.core.launch.JobLauncher;
import org.springframework.batch.core.repository.JobExecutionAlreadyRunningException;
import org.springframework.batch.core.repository.JobInstanceAlreadyCompleteException;
import org.springframework.batch.core.repository.JobRestartException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

/**
 * @Description:
 * @Author: qiuxie
 * @Create: 2023/4/30 15:35
 */
public class MysqlCsvApplication {


    public static void main(String[] args) throws JobParametersInvalidException, JobExecutionAlreadyRunningException, JobRestartException, JobInstanceAlreadyCompleteException {
        String[] springConfig  =  { "context.xml", "jobconfig.xml" };
        // Creating the application context object
        ApplicationContext context = new ClassPathXmlApplicationContext(springConfig);

        // Creating the job launcher
        JobLauncher jobLauncher = (JobLauncher) context.getBean("jobLauncher");

        // Creating the job
        Job job = (Job) context.getBean("helloWorldJob");

        // Executing the JOB
        JobExecution execution = jobLauncher.run(job, new JobParameters());
        System.out.println("Exit Status : " + execution.getStatus());

    }
}
